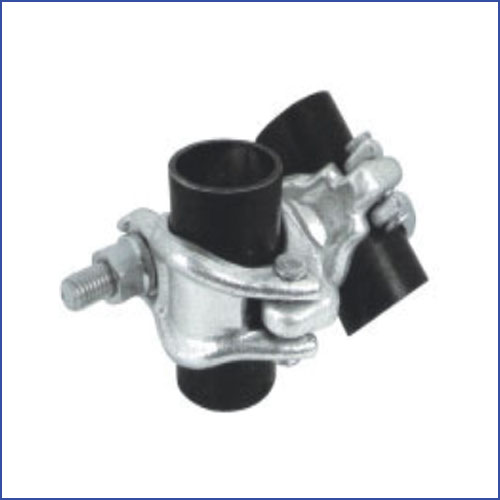

Swivel Coupler

Swivel couplers connect two scaffold tubes at any angle to provide ledger, facade, or similar bracing. These are also key components in the structure and must also be load bearing. The body is firmly riveted to permit rotation but still ensures the minimum of further movement, for maximum rigidity. Again, the T-bolts can be removed for maintenance.

Pressed
Safe working load: 6.25kN
Weight: 1.02kg

Forged
Safe working load: 6.25kN
Weight: 1.20kg
