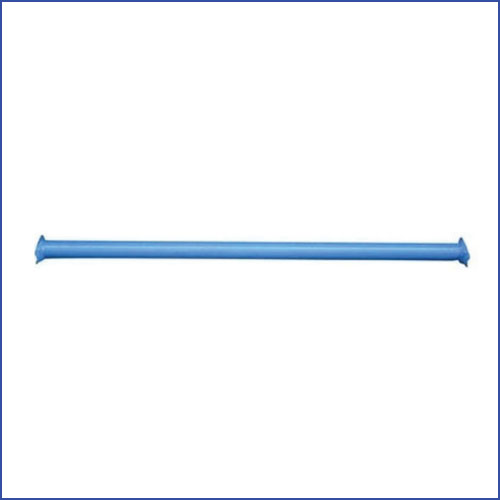

Ledger (Horizontal)

All ledgers incorporate symmetrical forged blade ends making assembly quick and simple, and allows components to be completely interchangeable. Ledger locate in the bottom cups of the standard and are secured by locking the top cup.

• 2.5m ledgers provide the basic bay length in a T-LOCK access structure. This is a suitable bay size for all common access loading conditions
• 1.8m ledgers provide a make-up bay size for added flexibility
• Normal ledgers also act as guardrails



Lenght (m)	Weight (kg)
2.5	10.0
1.8	7.5
1.6	6.8
1.3	5.7
1.2	5.4
1.1	5.0
1.0	4.6
0.9	4.3
0.6	3.2
